FURNACE MU 700

Product Description

With the MU series we offer melting machines for many different demands and with crucible capacities from 155 ccm up to 1,200 ccm. The material is molten in open crucibles and poured by hand into the mould.

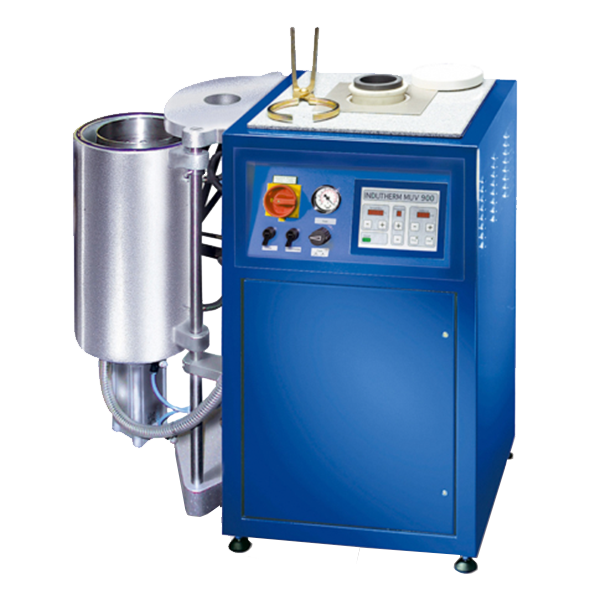

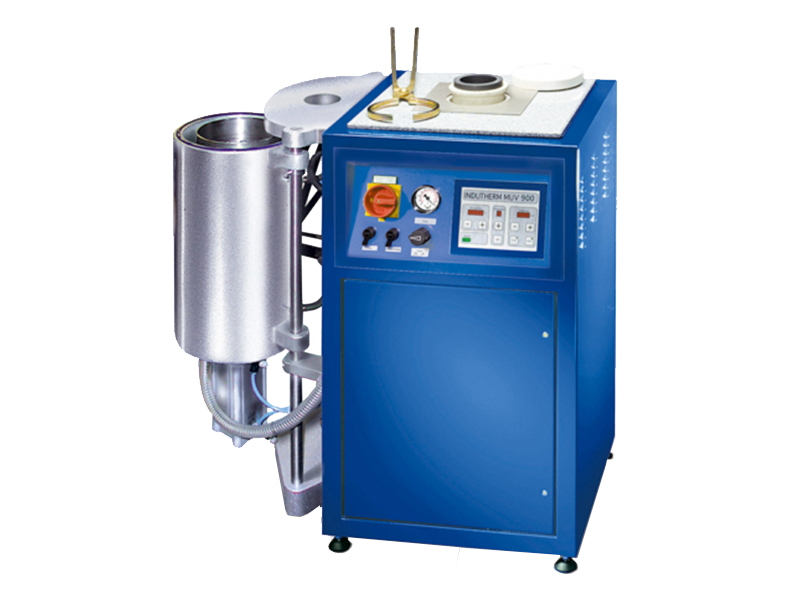

Melting Units MU Series

Flexible melting furnaces designed to melt gold and silver alloys and as well as aluminium, bronze, brass a.s.o. Due to the strong induction generator up to 15 kW and the low induction frequency the stirring effect of the metal is excellent.

PERFORMANCE

• performance max. / electrical connection –  12 kW 3×400 V
• maximum temperature – 1500° C

CAPACITY

• crucible volume – MU 700: 700 ccm = 9 kg Au 18 ct

HANDLING + CONTROL

• temperature measurement thermocouple –  standard equipment
• temperature control – standard equipment
• temperature programs – 20

QUALITY MANAGEMENT

• interface RS 232   standard equipment
• GSM modem – optional

For more information visit Indutherm
